Z6 G4 WS X/2.2 16GB 256GB SSD P1000 W10P
Z6 G4 WS X/2.2 16GB 256GB SSD P1000 W10P
HP

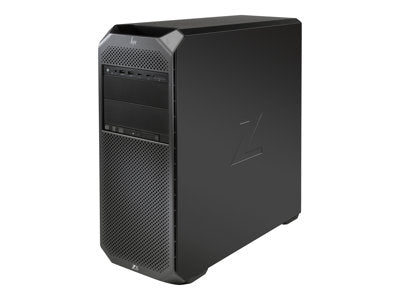

Z6 G4 WS X/2.2 16GB 256GB SSD P1000 W10P

$3,244.00 $0.00

MAIN SPECIFICATIONS

Product Description HP Workstation Z6 G4 - tower - Xeon Silver 4214 2.2 GHz - vPro - 16 GB - SSD 256 GB, HDD 1 TB - US
Type Workstation - tower
Platform Technology Intel vPro Platform
Height (Rack Units) 4U
Localization Language: English / region: United States
Processor 1 x Intel Xeon Silver 4214 / 2.2 GHz (3.2 GHz) (12-core)
Processor Socket FCLGA3647 Socket
Processor Main Features Hyper-Threading Technology, Intel Turbo Boost Technology 2
Cache Memory 16.5 MB L3 cache
Cache Per Processor 16.5 MB
RAM 16 GB (installed) / 384 GB (max) - DDR4 SDRAM - ECC
Storage Controller SATA (SATA 6Gb/s)
Hard Drive SSD 256 GB - PCI Express - M.2 2280 - HP Z Turbo Drive
Hard Drive (2nd) HDD 1 TB - SATA 6Gb/s - 7200 rpm
Optical Storage DVD-Writer
Graphics Controller PCIe 3.0 x16 - NVIDIA Quadro P1000
Video Memory 4 GB GDDR5 SDRAM
Audio Output Stereo
Networking GigE
Keyboard US
Power AC 120/230 V (50/60 Hz)
OS Provided Windows 10 Pro for Workstations 64-bit Edition
Color Black
Dimensions (WxDxH) 6.7 in x 18.3 in x 17.5 in
Weight 28.88 lbs
Manufacturer Selling Program HP Smart Buy
Manufacturer Warranty Limited warranty - parts and labor - 3 years - on-site


EXTENDED SPECIFICATIONS

General
Platform Technology Intel vPro Platform
Type Workstation
Product Form Factor Tower - 4U
Embedded Security Trusted Platform Module (TPM 2.0) Security Chip
Color Black
Localization Language: English / region: United States
Processor / Chipset
CPU Intel Xeon Silver 4214 / 2.2 GHz
Max Turbo Speed 3.2 GHz
Number of Cores 12-core
CPU Qty 1
Max CPU Qty 2
CPU Upgradability Upgradable
Processor Main Features Hyper-Threading Technology, Intel Turbo Boost Technology 2
CPU Socket FCLGA3647 Socket
Chipset Type Intel C622
Cache Memory
Installed Size L3 cache - 16.5 MB
Cache Per Processor 16.5 MB
RAM
Installed Size 16 GB / 384 GB (max)
Technology DDR4 SDRAM - ECC
Effective Memory Speed 2400 MHz
Rated Memory Speed 2933 MHz
Form Factor DIMM 288-pin
Slots 6 (total) / 4 (empty)
Features Registered, slots 7 - 12 are available in two-processor configuration only, non-uniform memory architecture
Configuration Features 2 x 8 GB
Hard Drive
Type SSD - M.2 2280
Capacity 1 x 256 GB
Interface Type PCI Express
Features HP Z Turbo Drive
Hard Drive (2nd)
Type HDD
Interface Class Serial ATA
Capacity 1 x 1 TB
Interface Type SATA 6Gb/s
Spindle Speed 7200 rpm
Storage Controller
Type SATA
Controller Interface Type SATA 6Gb/s
Channel Qty 6
RAID Level RAID 0, RAID 1, RAID 10
Optical Storage
Type DVD-Writer DVD-Writer - SATA
Monitor
Monitor Type None.
Graphics Controller
Interface Type PCIe 3.0 x16
Graphics Processor NVIDIA Quadro P1000
Video Memory 4 GB GDDR5 SDRAM
Video Interfaces DisplayPort
Audio Output
Sound Output Mode Stereo
Compliant Standards High Definition Audio
Input Device
Type Mouse, keyboard
Keyboard
Keyboard Name HP Business Slim Keyboard
Interface USB
Localization & Layout US
Mouse
Technology Optical
Interface USB
Networking
Ethernet Ports 2 x Gigabit Ethernet
Ethernet Controller Intel i219-LM, X722
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Features Wake on LAN (WoL), PXE 2.1 support
Compliant Standards IEEE 802.3, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1as, IEEE 802.3az, IEEE 802.3ax
Expansion / Connectivity
Bays 2 (total) / 1 (free) x internal 3.5" ¦ 2 (total) / 2 (free) x external 5.25" ¦ 1 (total) / 0 (free) x external 5.25" Slim Line
Slots 3 (total) / 3 (free) x PCIe 3.0 x4 ¦ 2 (total) / 1 (free) x PCIe 3.0 x16 ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 (open ended, slot converts to x4 electrical when SSD is installed in 2nd M.2 slot) ¦ 2 (total) / 1 (free) x M.2 Card - 2280 (x4 mode)
Interfaces 1 x headphones/microphone (1 in front) ¦ 10 x USB 3.1 Gen 1 (4 front, 6 rear) (one of them is charging) ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x audio line-out ¦ 1 x audio line-in/microphone ¦ 1 x PS/2 mouse ¦ 1 x PS/2 keyboard ¦ 4 x Mini DisplayPort
Miscellaneous
Theft/Intrusion Protection Security lock slot (cable lock sold separately), padlock loop
Security Slot Type Kensington security slot
Compliant Standards RoHS, WEEE, Common Criteria EAL4+, ACPI 5.0, low halogen
Manufacturer Selling Program HP Smart Buy
Power
Device Type Power supply
Voltage Required AC 120/230 V (50/60 Hz)
Power Provided 1000 Watt
80 PLUS Certification 80 PLUS
Efficiency 90%
Power Factor Correction Yes (active)
Operating System / Software
OS Provided Windows 10 Pro for Workstations 64-bit Edition English
Software HP Remote Graphics Software, HP Performance Advisor, HP Secure Erase, HP SureStart Gen3
Manufacturer Warranty
Service & Support Limited warranty - parts and labor - 3 years - on-site
Dimensions & Weight
Width 6.7 in
Depth 18.3 in
Height 17.5 in
Weight 28.88 lbs
Dimensions & Weight (Shipping)
Shipping Width 12.3 in
Shipping Depth 23.3 in
Shipping Height 24 in
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 95 °F
Humidity Range Operating 10 - 85% (non-condensing)
