Z6 G4 WS X/2.1 16GB 512GB SSD DVDR W10P
Z6 G4 WS X/2.1 16GB 512GB SSD DVDR W10P
HP

Z6 G4 WS X/2.1 16GB 512GB SSD DVDR W10P

Regular price $3,339.00 $0.00
  • MAIN SPECIFICATIONS

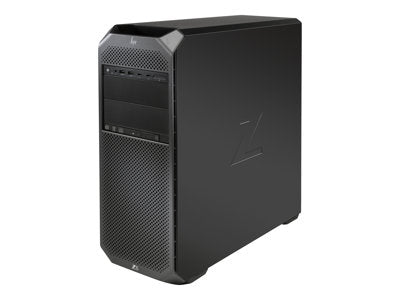

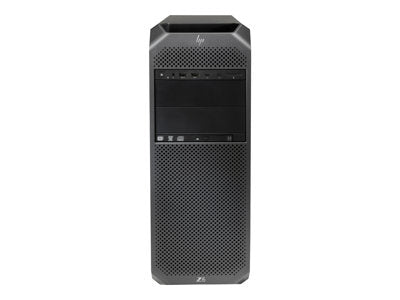

    Product Description HP Workstation Z6 G4 - tower - Xeon Silver 4216 2.1 GHz - vPro - 16 GB - SSD 512 GB - US
    Type Workstation - tower
    Platform Technology Intel vPro Platform
    Height (Rack Units) 4U
    Localization Language: English / region: United States
    Processor 1 x Intel Xeon Silver 4216 / 2.1 GHz (3.2 GHz) (16-core)
    Processor Socket FCLGA3647 Socket
    Processor Main Features Hyper-Threading Technology, Intel Turbo Boost Technology 2
    Cache Memory 22 MB L3 cache
    Cache Per Processor 22 MB
    RAM 16 GB (installed) / 384 GB (max) - DDR4 SDRAM - ECC
    Storage Controller SATA (SATA 6Gb/s)
    Hard Drive SSD 512 GB - PCI Express - M.2 2280 - HP Z Turbo Drive
    Optical Storage DVD-Writer
    Graphics Controller No graphics
    Audio Output Stereo
    Networking GigE
    Keyboard US
    Power AC 120/230 V (50/60 Hz)
    OS Provided Windows 10 Pro for Workstations 64-bit Edition
    Color Black
    Dimensions (WxDxH) 6.7 in x 18.3 in x 17.5 in
    Weight 28.88 lbs
    Manufacturer Selling Program HP Smart Buy
    Manufacturer Warranty Limited warranty - parts and labor - 3 years - on-site

    EXTENDED SPECIFICATIONS

    General
    Platform Technology Intel vPro Platform
    Type Workstation
    Product Form Factor Tower - 4U
    Embedded Security Trusted Platform Module (TPM 2.0) Security Chip
    Color Black
    Localization Language: English / region: United States
    Processor / Chipset
    CPU Intel Xeon Silver 4216 / 2.1 GHz
    Max Turbo Speed 3.2 GHz
    Number of Cores 16-core
    CPU Qty 1
    Max CPU Qty 2
    CPU Upgradability Upgradable
    Processor Main Features Hyper-Threading Technology, Intel Turbo Boost Technology 2
    CPU Socket FCLGA3647 Socket
    Chipset Type Intel C622
    Cache Memory
    Installed Size L3 cache - 22 MB
    Cache Per Processor 22 MB
    RAM
    Installed Size 16 GB / 384 GB (max)
    Technology DDR4 SDRAM - ECC
    Effective Memory Speed 2400 MHz
    Rated Memory Speed 2933 MHz
    Form Factor DIMM 288-pin
    Slots 6 (total) / 4 (empty)
    Features Registered, slots 7 - 12 are available in two-processor configuration only, non-uniform memory architecture
    Configuration Features 2 x 8 GB
    Hard Drive
    Type SSD - M.2 2280
    Capacity 1 x 512 GB
    Interface Type PCI Express
    Features HP Z Turbo Drive
    Storage Controller
    Type SATA
    Controller Interface Type SATA 6Gb/s
    Channel Qty 6
    RAID Level RAID 0, RAID 1, RAID 10
    Optical Storage
    Type DVD-Writer DVD-Writer - SATA
    Monitor
    Monitor Type None.
    Graphics Controller
    Graphics Processor No graphics
    Audio Output
    Sound Output Mode Stereo
    Compliant Standards High Definition Audio
    Input Device
    Type Mouse, keyboard
    Keyboard
    Keyboard Name HP Business Slim Keyboard
    Interface USB
    Localization & Layout US
    Mouse
    Technology Optical
    Interface USB
    Networking
    Ethernet Ports 2 x Gigabit Ethernet
    Ethernet Controller Intel i219-LM, X722
    Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
    Features Wake on LAN (WoL), PXE 2.1 support
    Compliant Standards IEEE 802.3, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1as, IEEE 802.3az, IEEE 802.3ax
    Expansion / Connectivity
    Bays 2 (total) / 2 (free) x internal 3.5" ¦ 2 (total) / 2 (free) x external 5.25" ¦ 1 (total) / 0 (free) x external 5.25" Slim Line
    Slots 3 (total) / 3 (free) x PCIe 3.0 x4 ¦ 2 (total) / 2 (free) x PCIe 3.0 x16 ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 (open ended, slot converts to x4 electrical when SSD is installed in 2nd M.2 slot) ¦ 2 (total) / 1 (free) x M.2 Card - 2280 (x4 mode)
    Interfaces 1 x headphones/microphone (1 in front) ¦ 10 x USB 3.1 Gen 1 (4 front, 6 rear) (one of them is charging) ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x audio line-out ¦ 1 x audio line-in/microphone ¦ 1 x PS/2 mouse ¦ 1 x PS/2 keyboard
    Miscellaneous
    Included Accessories HP Keyed Cable Lock Kit
    Theft/Intrusion Protection Security lock slot (cable lock sold separately), padlock loop
    Security Slot Type Kensington security slot
    Compliant Standards RoHS, WEEE, Common Criteria EAL4+, ACPI 5.0, low halogen
    Manufacturer Selling Program HP Smart Buy
    Power
    Device Type Power supply
    Voltage Required AC 120/230 V (50/60 Hz)
    Power Provided 1000 Watt
    80 PLUS Certification 80 PLUS
    Efficiency 90%
    Power Factor Correction Yes (active)
    Operating System / Software
    OS Provided Windows 10 Pro for Workstations 64-bit Edition English
    Software HP Remote Graphics Software, HP Performance Advisor, HP Secure Erase, HP SureStart Gen3
    Manufacturer Warranty
    Service & Support Limited warranty - parts and labor - 3 years - on-site
    Dimensions & Weight
    Width 6.7 in
    Depth 18.3 in
    Height 17.5 in
    Weight 28.88 lbs
    Dimensions & Weight (Shipping)
    Shipping Width 12.3 in
    Shipping Depth 23.3 in
    Shipping Height 24 in
    Environmental Parameters
    Min Operating Temperature 41 °F
    Max Operating Temperature 95 °F
    Humidity Range Operating 10 - 85% (non-condensing)
