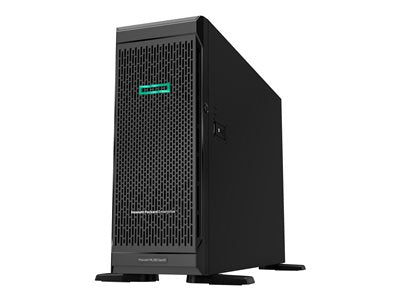

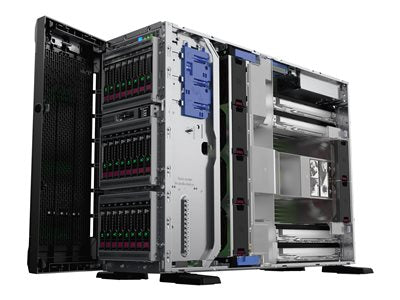

HPE ProLiant ML350 Gen10 Base - tower - Xeon Silver 4210R 2.4 GHz - 16 GB - no HDD
HPE ProLiant ML350 Gen10 Base - tower - Xeon Silver 4210R 2.4 GHz - 16 GB - no HDD
HP

HPE ProLiant ML350 Gen10 Base - tower - Xeon Silver 4210R 2.4 GHz - 16 GB - no HDD

Regular price $3,885.00 $0.00

MAIN SPECIFICATIONS

Product Description HPE ProLiant ML350 Gen10 Base - tower - Xeon Silver 4210R 2.4 GHz - 16 GB - no HDD
Type Server - tower
Height (Rack Units) 4U
Localization Region: United States
Server Scalability 2-way
Processor 1 x Intel Xeon Silver 4210R / 2.4 GHz (3.2 GHz) (10-core)
Processor Socket FCLGA3647 Socket
Processor Main Features Hyper-Threading Technology, Intel Turbo Boost Technology 2
Cache Memory 13.75 MB L3 cache
Cache Per Processor 13.75 MB
RAM 16 GB (installed) / 1.5 TB (max) - DDR4 SDRAM - Advanced ECC
Storage Controller RAID (SATA 6Gb/s / SAS 12Gb/s) - PCIe 3.0 x8 (HPE Smart Array P408i-a SR Gen10)
Server Storage Bays Hot-swap 2.5"
Hard Drive No HDD
Optical Storage No optical drive
Video Memory 16 MB
Networking GigE
Power AC 120/230 V (50/60 Hz)
Power Redundancy Optional
Dimensions (WxDxH) 6.9 in x 25.5 in x 18.2 in
Weight 46.3 lbs
Manufacturer Warranty Limited warranty - parts and labor - 3 years - on-site

EXTENDED SPECIFICATIONS

General
Type Server
Product Form Factor Tower - 4U
Server Scalability 2-way
Hot-Swap Bays Qty 8
Localization Region: United States
Processor / Chipset
CPU Intel Xeon Silver 4210R / 2.4 GHz
Max Turbo Speed 3.2 GHz
Number of Cores 10-core
CPU Qty 1
Max CPU Qty 2
CPU Upgradability Upgradable
Processor Main Features Hyper-Threading Technology, Intel Turbo Boost Technology 2
CPU Socket FCLGA3647 Socket
Chipset Type Intel C622
Cache Memory
Installed Size L3 cache - 13.75 MB
Cache Per Processor 13.75 MB
RAM
Installed Size 16 GB / 1.5 TB (max)
Technology DDR4 SDRAM - Advanced ECC
Effective Memory Speed 2400 MHz
Rated Memory Speed 2933 MHz
Form Factor DIMM 288-pin
Slots 24 (total) / 23 (empty)
Features Registered, slots 13 - 24 are available in two-processor configuration only, HPE SmartMemory
Configuration Features 1 x 16 GB
RAM Supported 3 TB Load-Reduced - ECC ¦ 1.5 TB registered - ECC
Hard Drive
Type No HDD
Storage Controller
Type 1 x RAID - PCIe 3.0 x8
Controller Interface Type SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name HPE Smart Array P408i-a SR Gen10
Channel Qty 8
RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
Buffer Size 2 GB
Optical Storage
Type No optical drive
Monitor
Monitor Type None.
Graphics Controller
Video Memory 16 MB
Video Interfaces VGA
Networking
Ethernet Ports 4 x Gigabit Ethernet
Ethernet Controller HP 369i
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol SNMP 3, IPMI 2.0
Remote Management Controller Integrated Lights-Out 5
Features Wake on LAN (WoL), PXE support
Expansion / Connectivity
Bays 8 (total) / 8 (free) x hot-swap 2.5" SFF
Slots 2 (total) / 2 (free) x PCIe 3.0 x8 - full-length, full-height (x4 mode) ¦ 2 (total) / 2 (free) x PCIe 3.0 x16 - full-length, full-height ¦ 1 (total) / 1 (free) x microSD Card (internal)
Interfaces 1 x VGA ¦ 1 x serial ¦ 4 x LAN (Gigabit Ethernet) ¦ 1 x HP iLO ¦ 5 x USB 3.0 (2 front, 2 rear, 1 internal) ¦ 1 x USB 2.0 (1 internal) ¦ 1 x HP iLO (1 in front) (service port)
Miscellaneous
Included Accessories 6 x standard fans
Theft/Intrusion Protection Security lock slot (cable lock sold separately)
Security Slot Type Kensington security slot
Compliant Standards ASHRAE Class A4, ASHRAE Class A3, ACPI 6.1, Energy-Related Products (ErP) Lot 9
Power
Device Type Power supply - hot-plug
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Installed Qty 1
Max Supported Qty 2
Nominal Voltage AC 120/230 V (50/60 Hz)
Power Provided 800 Watt
Operating System / Software
Software HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download)
Manufacturer Warranty
Service & Support Limited warranty - parts and labor - 3 years - on-site
Dimensions & Weight
Width 6.9 in
Depth 25.5 in
Height 18.2 in
Weight 46.3 lbs
Environmental Parameters
Min Operating Temperature 50 °F
Max Operating Temperature 95 °F
Humidity Range Operating 8 - 90% (non-condensing)
Sound Emission 27 dBA
