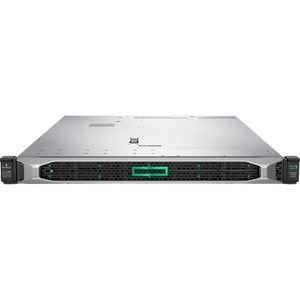

HPE ProLiant DL360 Gen10 Network Choice - rack-mountable - Xeon Gold 6226R 2.9 GHz - 32 GB - no HDD
HPE ProLiant DL360 Gen10 Network Choice - rack-mountable - Xeon Gold 6226R 2.9 GHz - 32 GB - no HDD
HP

HPE ProLiant DL360 Gen10 Network Choice - rack-mountable - Xeon Gold 6226R 2.9 GHz - 32 GB - no HDD

$6,820.00 $0.00

MAIN SPECIFICATIONS

Product Description HPE ProLiant DL360 Gen10 Network Choice - rack-mountable - Xeon Gold 6226R 2.9 GHz - 32 GB - no HDD
Type Server - rack-mountable
Height (Rack Units) 1U
Localization Region: Worldwide
Server Scalability 2-way
Processor 1 x Intel Xeon Gold 6226R / 2.9 GHz (3.9 GHz) (16-core)
Processor Socket FCLGA3647 Socket
Processor Main Features Hyper-Threading Technology, Intel Turbo Boost Technology 2
Cache Memory 22 MB L3 cache
Cache Per Processor 22 MB
RAM 32 GB (installed) / 1.5 TB (max) - DDR4 SDRAM - Advanced ECC - PC4-23466
Storage Controller SATA (SATA 6Gb/s) (HPE Smart Array S100i SR Software)
Server Storage Bays Hot-swap 2.5"
Hard Drive No HDD
Optical Storage No optical drive
Card Reader Yes
Video Memory 16 MB
Networking 10 GigE
Power AC 120/230 V (50/60 Hz)
Power Redundancy Optional
OS Provided No operating system
Dimensions (WxDxH) 17.1 in x 27.8 in x 1.7 in
Weight 28.75 lbs
Environmental Standards ENERGY STAR Qualified
Manufacturer Warranty Limited warranty - parts and labor - 3 years - on-site

EXTENDED SPECIFICATIONS

General
Type Server
Product Form Factor Rack-mountable - 1U
Built-in Devices Battery
Server Scalability 2-way
Hot-Swap Bays Qty 8
Localization Region: Worldwide
Processor / Chipset
CPU Intel Xeon Gold 6226R / 2.9 GHz
Max Turbo Speed 3.9 GHz
Number of Cores 16-core
CPU Qty 1
Max CPU Qty 2
CPU Upgradability Upgradable
Processor Main Features Hyper-Threading Technology, Intel Turbo Boost Technology 2
CPU Socket FCLGA3647 Socket
Chipset Type Intel C621
Cache Memory
Installed Size L3 cache - 22 MB
Cache Per Processor 22 MB
RAM
Installed Size 32 GB / 1.5 TB (max)
Technology DDR4 SDRAM - Advanced ECC
Effective Memory Speed 2933 MHz
Rated Memory Speed 2933 MHz
Memory Specification Compliance PC4-23466
Form Factor DIMM 288-pin
Slots 24 (total) / 23 (empty)
Features Registered, slots 13 - 24 are available in two-processor configuration only, HPE SmartMemory
Configuration Features 1 x 32 GB
RAM Supported 3 TB Load-Reduced - ECC ¦ 1.5 TB registered - ECC ¦ 192 GB Non-Volatile - ECC
Hard Drive
Type No HDD
Storage Controller
Type 1 x SATA
Controller Interface Type SATA 6Gb/s
Storage Controller Name HPE Smart Array S100i SR Software
Channel Qty 14
Optical Storage
Type No optical drive
Card Reader
Type Card reader
Supported Flash Memory Cards microSD
Monitor
Monitor Type None.
Graphics Controller
Video Memory 16 MB
Video Interfaces VGA
Networking
Ethernet Ports 2 x 10 Gigabit Ethernet
Ethernet Controller HPE 562FLR-T
Data Link Protocol 10 Gigabit Ethernet
Remote Management Protocol SNMP 3, IPMI 2.0, SMASH CLP
Remote Management Controller Integrated Lights-Out 5
Features Wake on LAN (WoL), PXE support
Expansion / Connectivity
Bays 1 (total) / 1 (free) x external Universal Media Bay ¦ 8 (total) / 8 (free) x hot-swap 2.5" SFF
Slots 1 (total) / 1 (free) x PCIe 3.0 x16 - three-quarter-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - low-profile ¦ 1 (total) / 1 (free) x FlexibleLOM - three-quarter-length, full-height (low-profile) ¦ 1 (total) / 1 (free) x microSD Card (internal) ¦ 1 (total) / 1 (free) x PCIe x16 - full-height
Interfaces 1 x HPE iLO - Type A (1 in front) ¦ 1 x HPE iLO - RJ-45 (1 rear) ¦ 5 x USB 3.0 (1 front, 2 rear, 2 internal) ¦ 1 x VGA (1 rear) ¦ 2 x LAN (10Gigabit Ethernet)
Miscellaneous
Compliant Standards AES, FIPS 140-2, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1
Power
Device Type Power supply - hot-plug
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Installed Qty 1
Max Supported Qty 2
Voltage Required AC 120/230 V (50/60 Hz)
Power Provided 800 Watt
Operating System / Software
OS Provided No operating system
OS Certified CentOS, Microsoft Windows Server 2012 R2, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, VMware vSphere 6.5 (ESXi), SuSE Linux Enterprise Server 12 SP2, ClearOS
Software HPE Server UEFI
Environmental Standards
ENERGY STAR Certified Yes
ENERGY STAR Version 2.1
Manufacturer Warranty
Service & Support Limited warranty - parts and labor - 3 years - on-site
Dimensions & Weight
Width 17.1 in
Depth 27.8 in
Height 1.7 in
Weight 28.75 lbs
Environmental Parameters
Min Operating Temperature 50 °F
Max Operating Temperature 95 °F
Humidity Range Operating 8 - 90% (non-condensing)
Sound Emission 38.1 dBA
