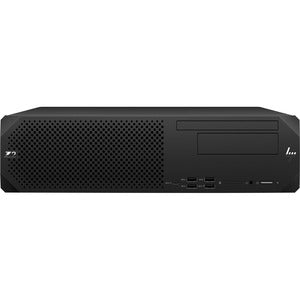

HP Workstation Z2 G5 - SFF - Core i5 10500 3.1 GHz - vPro - 16 GB - SSD 512 GB - US
HP Workstation Z2 G5 - SFF - Core i5 10500 3.1 GHz - vPro - 16 GB - SSD 512 GB - US
HP

HP Workstation Z2 G5 - SFF - Core i5 10500 3.1 GHz - vPro - 16 GB - SSD 512 GB - US

Regular price $1,254.00 $0.00

MAIN SPECIFICATIONS

Product Description HP Workstation Z2 G5 - SFF - Core i5 10500 3.1 GHz - vPro - 16 GB - SSD 512 GB - US
Type Workstation - small form factor
Platform Technology Intel vPro Platform
Localization Language: English / region: United States
Processor 1 x Intel Core i5 (10th Gen) 10500 / 3.1 GHz (4.5 GHz) (6-core)
Processor Socket FCLGA1200 Socket
Processor Main Features Hyper-Threading Technology, Intel Turbo Boost Technology 2
Cache Memory 12 MB
Cache Per Processor 12 MB
RAM 16 GB (installed) / 128 GB (max) - DDR4 SDRAM - non-ECC
Storage Controller SATA (SATA 6Gb/s)
Hard Drive SSD 512 GB - PCI Express 3.0 x4 - M.2 2280 - HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC), 3D NAND Technology
Optical Storage DVD-Writer
Graphics Controller Intel UHD Graphics 630 Dynamic Video Memory Technology
Networking GigE
Keyboard US
Power AC 120/230 V (50/60 Hz)
OS Provided Windows 10 Pro 64-bit Edition
Color Black
Dimensions (WxDxH) 13.3 in x 12.1 in x 3.9 in
Weight 11.9 lbs
Manufacturer Selling Program HP Smart Buy
Environmental Standards TCO Certified Desktops 8, ENERGY STAR Qualified EPEAT Gold
Manufacturer Warranty Limited warranty - parts and labor - 3 years - on-site

EXTENDED SPECIFICATIONS

General
Platform Technology Intel vPro Platform
Type Workstation
Product Form Factor Small form factor
Built-in Devices Speaker
Embedded Security Trusted Platform Module (TPM 2.0) Security Chip
Color Black
Localization Language: English / region: United States
Processor / Chipset
CPU Intel Core i5 (10th Gen) 10500
Clock Speed 3.1 GHz
Max Turbo Speed 4.5 GHz
Number of Cores 6-core
CPU Qty 1
Max CPU Qty 1
CPU Upgradability Upgradable
Processor Main Features Hyper-Threading Technology, Intel Turbo Boost Technology 2
CPU Socket FCLGA1200 Socket
Chipset Type Intel W480
Cache Memory
Installed Size 12 MB
Cache Per Processor 12 MB
RAM
Installed Size 16 GB / 128 GB (max)
Technology DDR4 SDRAM - non-ECC
Effective Memory Speed 2666 MHz
Rated Memory Speed 3200 MHz
Form Factor DIMM 288-pin
Slots 4 (total) / 2 (empty)
Features Unbuffered
Configuration Features 2 x 8 GB
Hard Drive
Type SSD - M.2 2280
Capacity 1 x 512 GB
Interface Type PCI Express 3.0 x4
Features HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC), 3D NAND Technology
Storage Controller
Type 1 x SATA
Controller Interface Type SATA 6Gb/s
Channel Qty 4
RAID Level RAID 0, RAID 1
Optical Storage
Type DVD-Writer
Monitor
Monitor Type None.
Graphics Controller
Graphics Processor Intel UHD Graphics 630 Dynamic Video Memory Technology
Video Interfaces DisplayPort
Audio Output
Compliant Standards High Definition Audio
Input Device
Type Mouse, keyboard
Keyboard
Keyboard Name HP 320K
Interface USB
Localization & Layout US
Mouse
Mouse Name HP 320M
Networking
Ethernet Controller Intel I219-LM
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Features Wake on LAN (WoL), ACPI support, auto-uplink (auto MDI/MDI-X), PXE 2.1 support, Intel Active Management Technology (AMT) 12
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1as, IEEE 802.3az
Expansion / Connectivity
Bays 1 (total) / 1 (free) x internal 2.5" ¦ 1 (total) / 1 (free) x external 5.25" Slim Line ¦ 1 (total) / 1 (free) x 3.5" ¦ 1 (total) / 1 (free) x internal 3.5"
Slots 1 (total) / 1 (free) x M.2 Card - 2230 (PCIe 3.0 x1 mode and Intel CNVi wireless module) ¦ 2 (total) / 1 (free) x M.2 Card - 2280 (x4 mode) ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, low-profile ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, low-profile (x4 mode) ¦ 2 (total) / 2 (free) x PCIe 3.0 x1 - half-length, low-profile (open ended)
Interfaces 4 x USB 3.1 Gen 1 (2 front, 2 rear) ¦ 1 x headphones/microphone (1 in front) (CTIA and OMTP headset support) ¦ 1 x LAN (Gigabit Ethernet) ¦ 3 x DisplayPort ¦ 4 x USB 3.1 Gen 2 (2 front, 2 rear) ¦ 2 x USB 2.0 ¦ 1 x audio line-out ¦ 1 x USB-C 3.1 Gen 2 (1 in front) (charging)
Miscellaneous
Theft/Intrusion Protection Security lock slot (cable lock sold separately)
Security Slot Type Kensington security slot
Compliant Standards ACPI, RoHS, WEEE, low halogen
Manufacturer Selling Program HP Smart Buy
Power
Device Type Power supply
Voltage Required AC 120/230 V (50/60 Hz)
Power Factor Correction Yes (active)
Operating System / Software
OS Provided Windows 10 Pro 64-bit Edition English
Software HP Support Assistant, Windows Defender, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP BIOS Config Utility, HP Image Assistant, HP Documentation, HP PC Hardware Diagnostics, HP System Software Manager, HP Notifications, HP Performance Advisor (free download), HP ZCentral Remote Boost 2020, HP Manageability Integration Kit Gen4 (free dowload), HP Client Security Manager Gen6, HP BIOSphere Gen6, HP Wake on WLAN, HP Desktop Support Utility
Environmental Standards
TCO Certified TCO Certified Desktops 8
EPEAT Compliant EPEAT Gold
ENERGY STAR Certified Yes
Manufacturer Warranty
Service & Support Limited warranty - parts and labor - 3 years - on-site
Dimensions & Weight
Width 13.3 in
Depth 12.1 in
Height 3.9 in
Weight 11.9 lbs
Dimensions & Weight (Shipping)
Shipping Width 15.7 in
Shipping Depth 19.6 in
Shipping Height 9 in
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 95 °F
Humidity Range Operating 10 - 85% (non-condensing)
